A closer look

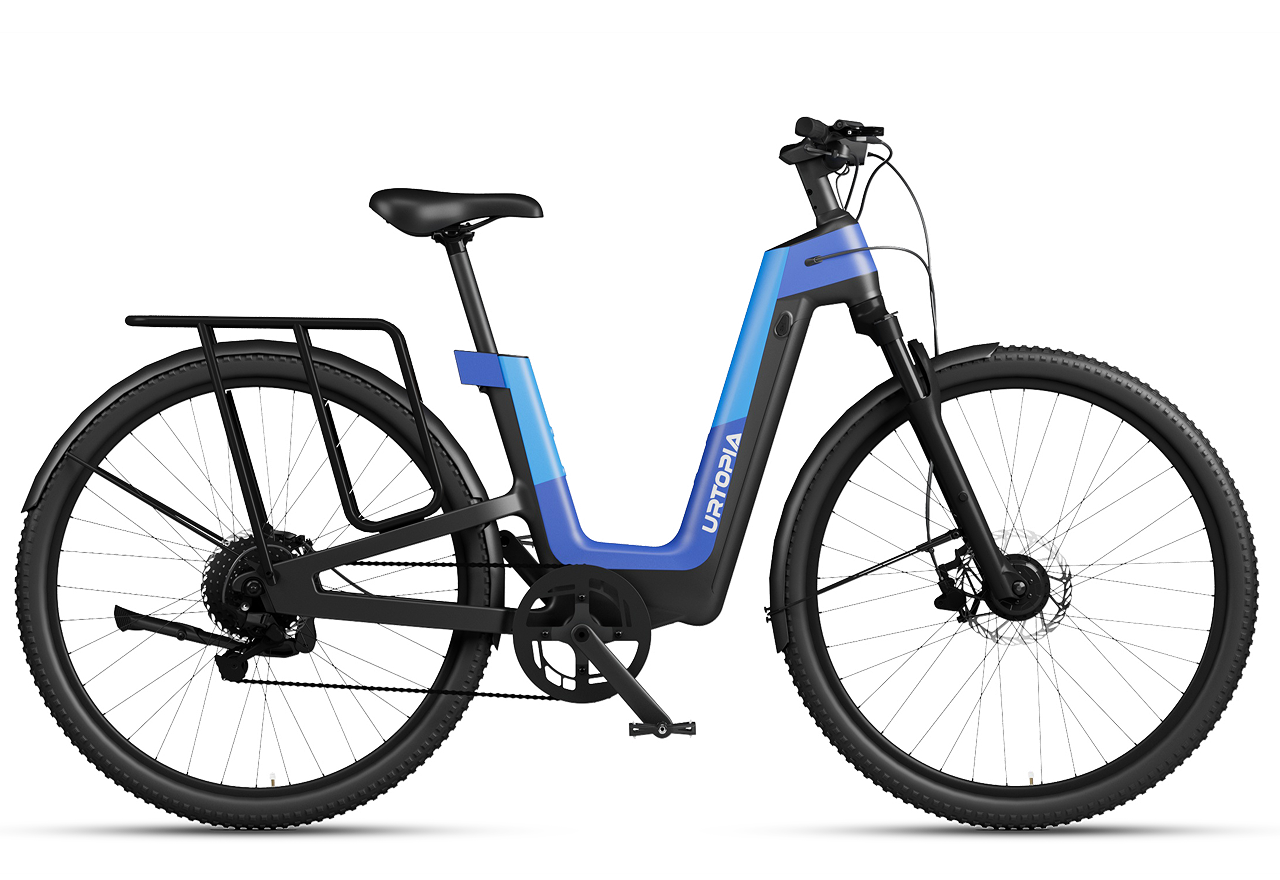

Urtopia Carbon Fusion GT E-Bike
- Motor Power
- Rated Power 350W front hub; / Rated Power 350W rear hub
- Battery
- 529.2Wh
- Pedal Assist Range
- Up to 68 miles
- Total Payload Limit
- 330 lbs
Get to know your ride.
- Material
- Carbon fiber frame
- Brakes
- TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor
- Wheels
- Kenda 29" x 2.05" Tires
- Sensors
- Torque sensor, accelerometer, gyroscope
- Fork
- 60mm travel Aluminum suspension fork
Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
General Info
- Ideal use
- All Road
- Bike Weight
- 58 lbs (26.3kg)
- Net Weight
- 55.1lbs（25kg）w/ battery / 48.1lbs（21.8kg）w/o battery / *All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
- Material
- Carbon fiber frame
- Folding
- No
- Frame style
- Step-Through
- Pedal Assist Range
- Up to 68 miles / Up to 116 miles with extender battery / *The range was tested on flat roads under average traffic conditions. Actual range may vary depending on rider weight, road conditions, riding mode, and battery condition.
- Top Speed
- 20mph by default / 28mph upon unlock
- Total Payload Limit
- 330 lbs
- Rider Height
- Regular: 5'3" - 6'3"
- Brakes
- TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor
- Wheels
- Kenda 29" x 2.05" Tires
- Bike Water Resistance
- IP65
Ebike System
- Motor Power
- Rated Power 350W front hub; / Rated Power 350W rear hub
- Motor Max. Torque
- 36Nm front & 36Nm rear
- Battery
- 36V 14.7Ah (529.2Wh) Samsung/LG Li-ion, Removable, UL 2271 Certified
- External Battery
- 36V 9.8Ah (352.8Wh) Optional external battery
- Pedal Assist
- 4 levels
- Charger
- 36V 4A Fast Charger, 3.5-Hour Charging Time
- Display
- LED dot-matrix (Anti-glare)
- USB Charge
- No
- Sensors
- Torque sensor, accelerometer, gyroscope
- Lights
- Front: Integrated StVZO headlight / Rear: Tail light
- Throttle
- Yes (up to 20mph)
- Class
- Class 2 by default / Class 3 upon unlock
Drivetrain
- Chainrings
- 44T
- Crankset
- Aluminum alloy, 170mm
- Cassette
- 11T-40T, 8-Speed
- Chain
- Shimano 8-Speed
- Rear Derailleur
- Shimano ACERA 8-Speed
- Shift Lever
- 8 Speed Trigger
- Pedals
- 9/16" Alloy Platform
Cockpit
- Grips
- Durable ergonomic Grips, lockable
- Seat Post
- Aluminum Alloy,31.6mm Clamp / Total Length: 300mm / Marked Range: 100mm
- Fork
- 60mm travel Aluminum suspension fork
- Saddle
- DDK Saddle, 273x160x75mm
- Handlebar
- Aluminum, 28.6mm Clamp, 720mm Wide
- Stem
- Height Adjustable: 0/15/30mm
Smartbar
- Smartbar features
- On-board navigation, fingerprint unlock, AI assistant, voice control, bluetooth speaker, OTA update (wireless firmware update),IP65
- Connectivity
- eSIM with 4G, GPS, Bluetooth
- Theft Defenses
- Movement alarm, Electronic Fence, Find My Bike (live GPS tracking), Beep
- App
- Urtopia (iOS & Android)
- SIM/Connect Service
- Renewal via App (Urtopia)
Size guide
One Size
- Recomm. rider height
- 5’3’’ - 6’3’’
- A. Adjustable seat range
- 140 mm(6’’)
- B. Handlebar grips height
- 1085-1115 mm(43’’-44’’)
- C. Seat tube length
- 485 mm(19’’)
- D. Wheelbase
- 1205 mm(47’’)
- E. Overall length
- 1935 mm(76’’)
- F. Wheel diameter
- 730 mm(29’’)
- G. Top tube length (effective)
- 633 mm(25’’)
- H. Head tube length
- 144 mm(6’’)
- I. Headset height
- 90-120 mm(4’’-5’’)
- J. Standover height
- 470mm(19’’)
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 867-9792 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
Manufacturer information & resources
Model-specific reference information. Follow the manufacturer’s instructions for setup, use, and care.
- newurtopia.com — urtopia carbon fusion gt · Checked 2026-09-19
