A closer look

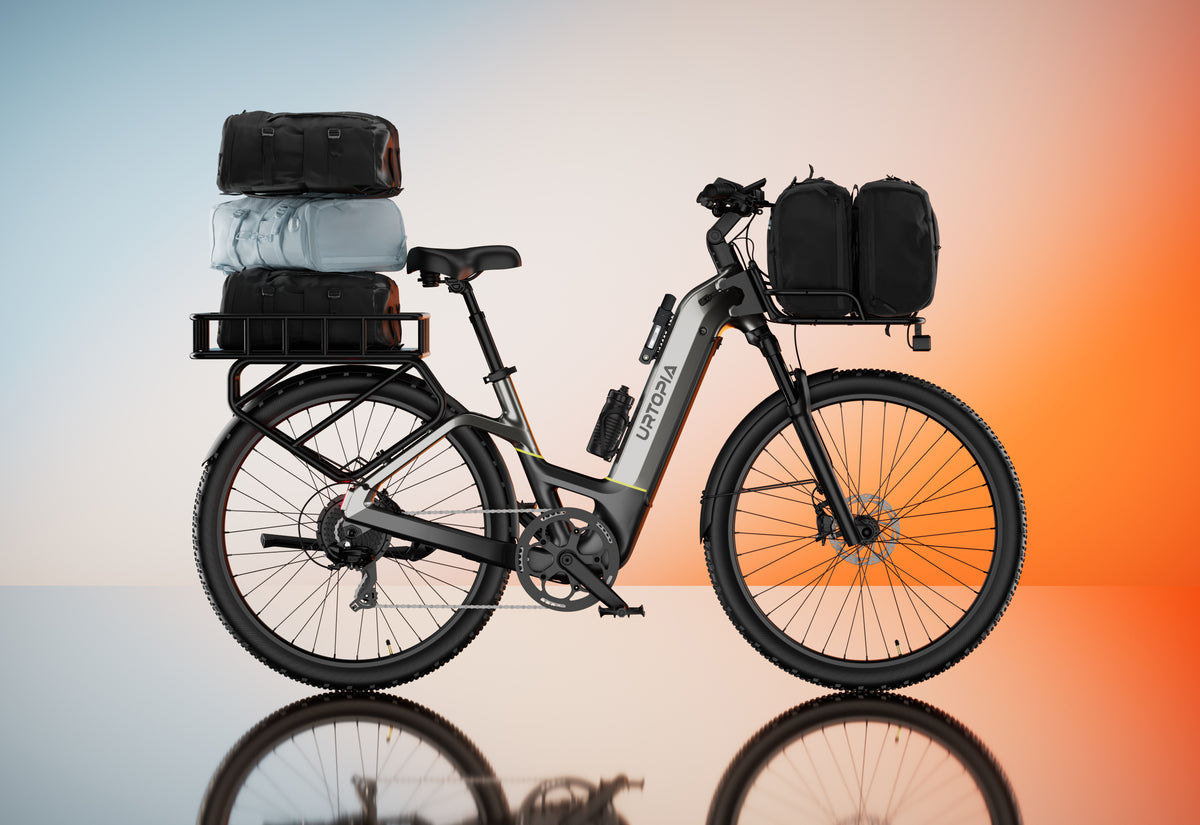

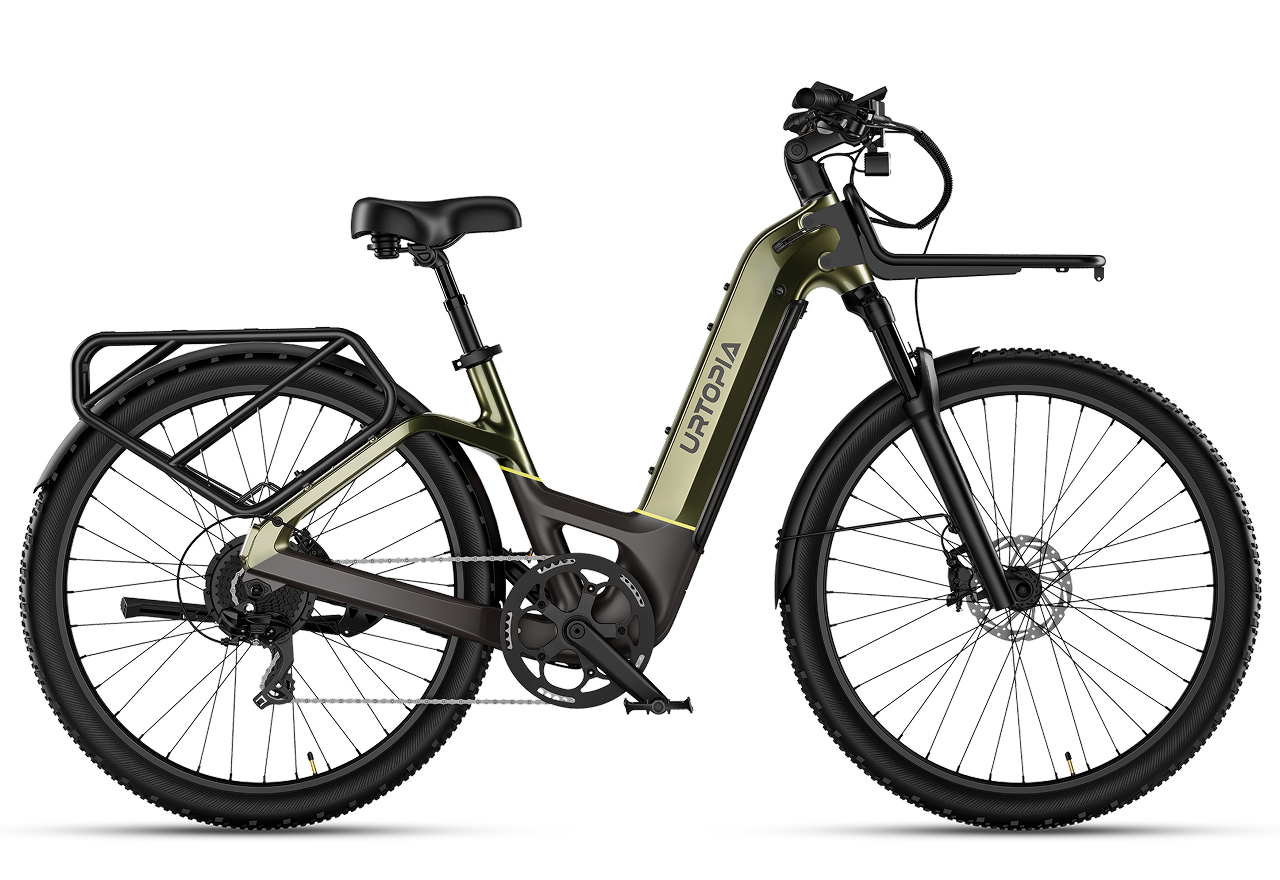

Urtopia Carbon Atom E-Bike

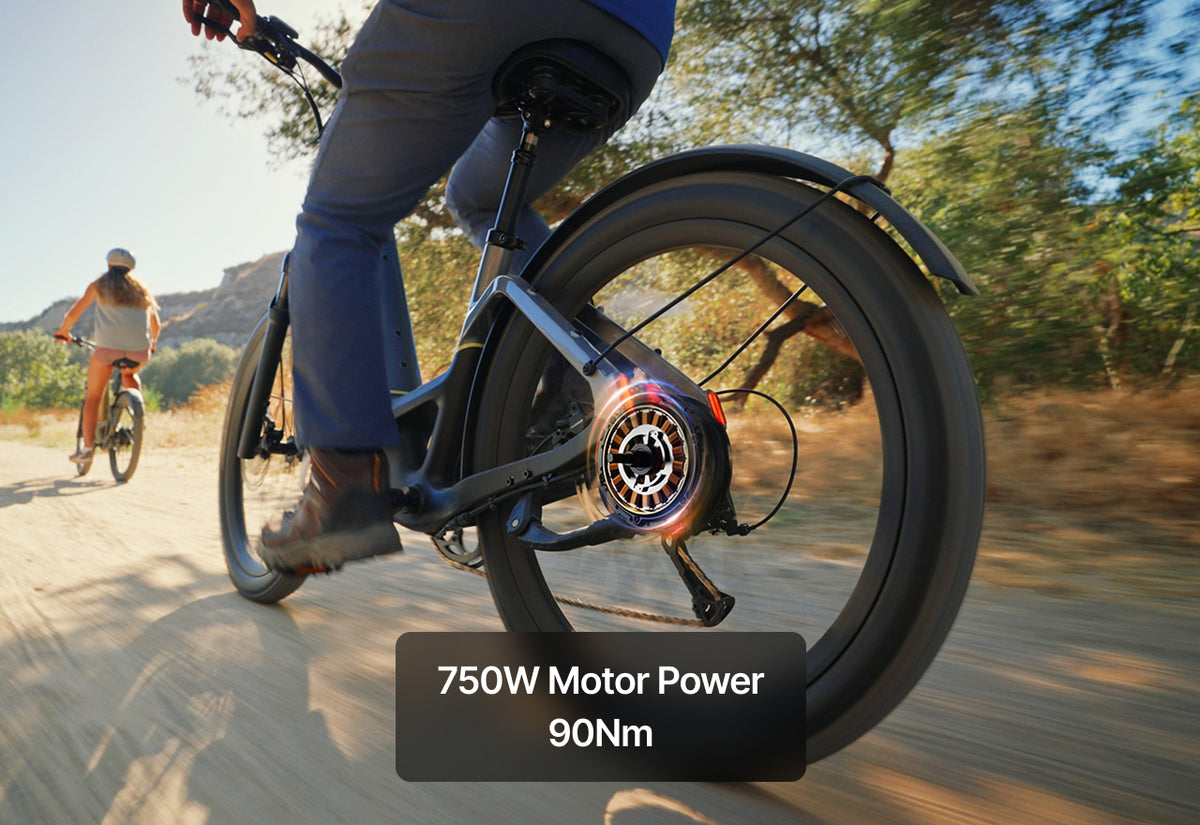

- Motor Power
- Rated Power 750W (Peak Power 1250W) rear hub
- Battery
- 835Wh
- Pedal Assist Range
- Up to 93 miles
- Total Payload Limit
- 330 lbs
Get to know your ride.

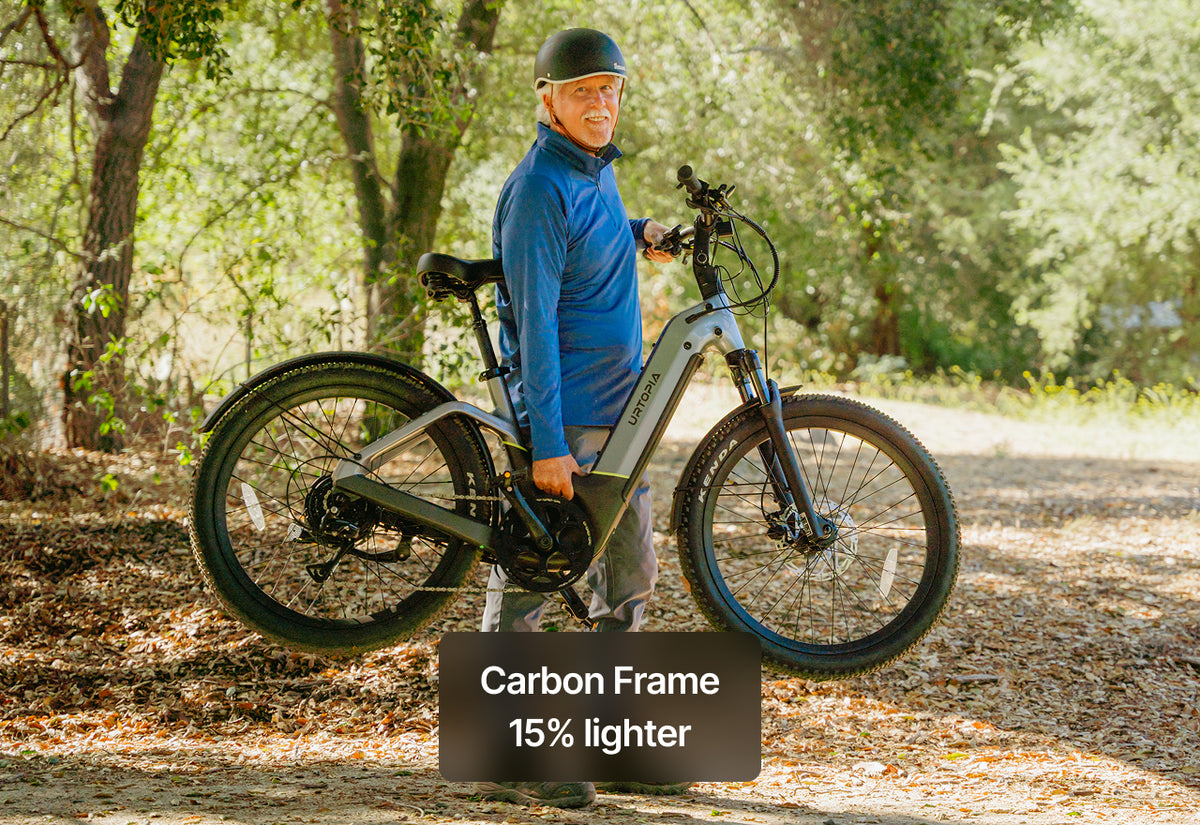

- Material
- Carbon fiber frame
- Brakes
- TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor
- Wheels
- Kenda 26" x 2.4", Puncture-Resistant Tires
- Sensors
- Torque sensor
- Fork
- 80mm travel Aluminum suspension fork
Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
General Info
- Ideal use
- All Road
- Bike Weight
- 61.7 lbs (28kg)
- Net Weight
- 58 lbs (26.5kg) w/ battery / 50 lbs (22.7kg) w/o battery / *All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
- Material
- Carbon fiber frame
- Folding
- No
- Frame style
- Step-Through
- Pedal Assist Range
- Up to 93 miles / *The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
- Top Speed
- 28mph
- Total Payload Limit
- 330 lbs
- Rider Height
- Regular: 5'3" - 6'3"
- Brakes
- TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor
- Wheels
- Kenda 26" x 2.4", Puncture-Resistant Tires
- Bike Water Resistance
- IP65
Ebike System
- Motor Power
- Rated Power 750W (Peak Power 1250W) rear hub
- Motor Max. Torque
- 90Nm
- Battery
- 48V 17.4Ah (835Wh) LG Li-ion, High-Performance Cell, Removable, UL 2271 Certified
- External Battery
- No
- Pedal Assist
- 4 levels
- Charger
- 48V 4.5A Fast Charger, 4-Hour Charging Time
- Display
- 3.5" color LCD
- USB Charge
- Yes
- Sensors
- Torque sensor
- Lights
- Front: External light, 100 lux / Rear: Integrated rear light with turn signal & brake light
- Throttle
- Yes (up to 20mph)
- Class
- Class 2 or 3
Drivetrain
- Chainrings
- 52T
- Crankset
- Aluminum, length 170mm
- Cassette
- 12T-32T, 8-Speed
- Chain
- Shimano 8-Speed
- Rear Derailleur
- Shimano ACERA 8-Speed
- Shift Lever
- 8 Speed Trigger
- Pedals
- 9/16" Alloy Platform
Cockpit
- Grips
- Durable ergonomic grips, lockable
- Seat Post
- Aluminum 30mm Travel Suspension Seatpost, 31.6mm Clamp, / Total Length: 355mm / Marked Range: 120mm
- Fork
- 80mm travel Aluminum suspension fork
- Saddle
- Comfort Saddle, 254x223x90mm
- Handlebar
- Aluminum, 31.8mm Clamp, 700mm Wide
- Stem
- Aluminum Stem, 0-90° Adjustable
Smartbar
- Smartbar features
- No
- Connectivity
- No
- App
- only for OTA
- SIM/Connect Service
- No
Size guide
One Size
- Recomm. rider height
- 5’3’’ - 6’3’’
- A. Top Tube Length
- 599 mm (23.6’’)
- B. Max Seat Height
- 1000 mm (39.4’’)
- C. Min Seat Height
- 850 mm (33.5’’)
- D. Overall Length
- 1830 mm (72.0’’)
- E. Wheelbase
- 1118 mm (44.0’’)
- F. Wheel Diameter
- 700 mm (27.6’’)
- G. Head Tube Length
- 143 mm (5.6’’)
- H. Handlebar grips height
- 1070 mm (42.1’’)
- I. Standover Height
- 440 mm (17.3’’)
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 867-9792 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
