A closer look

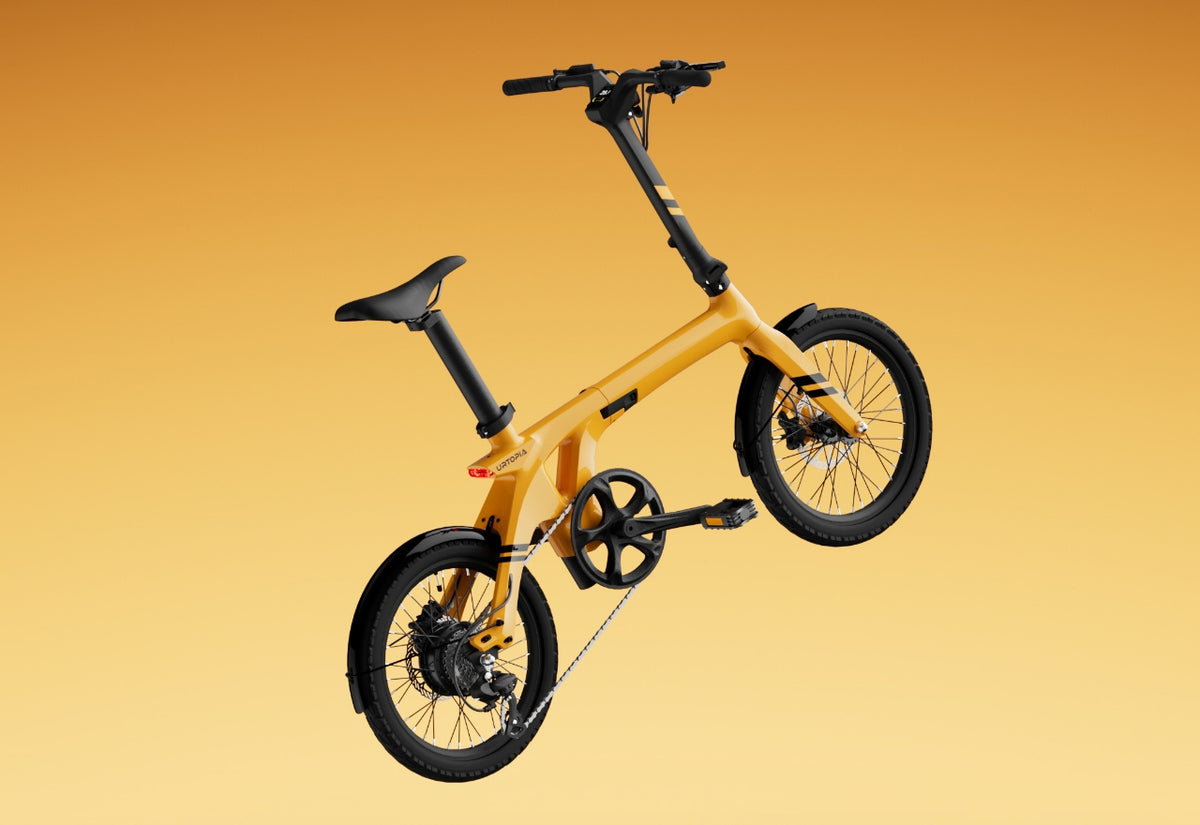

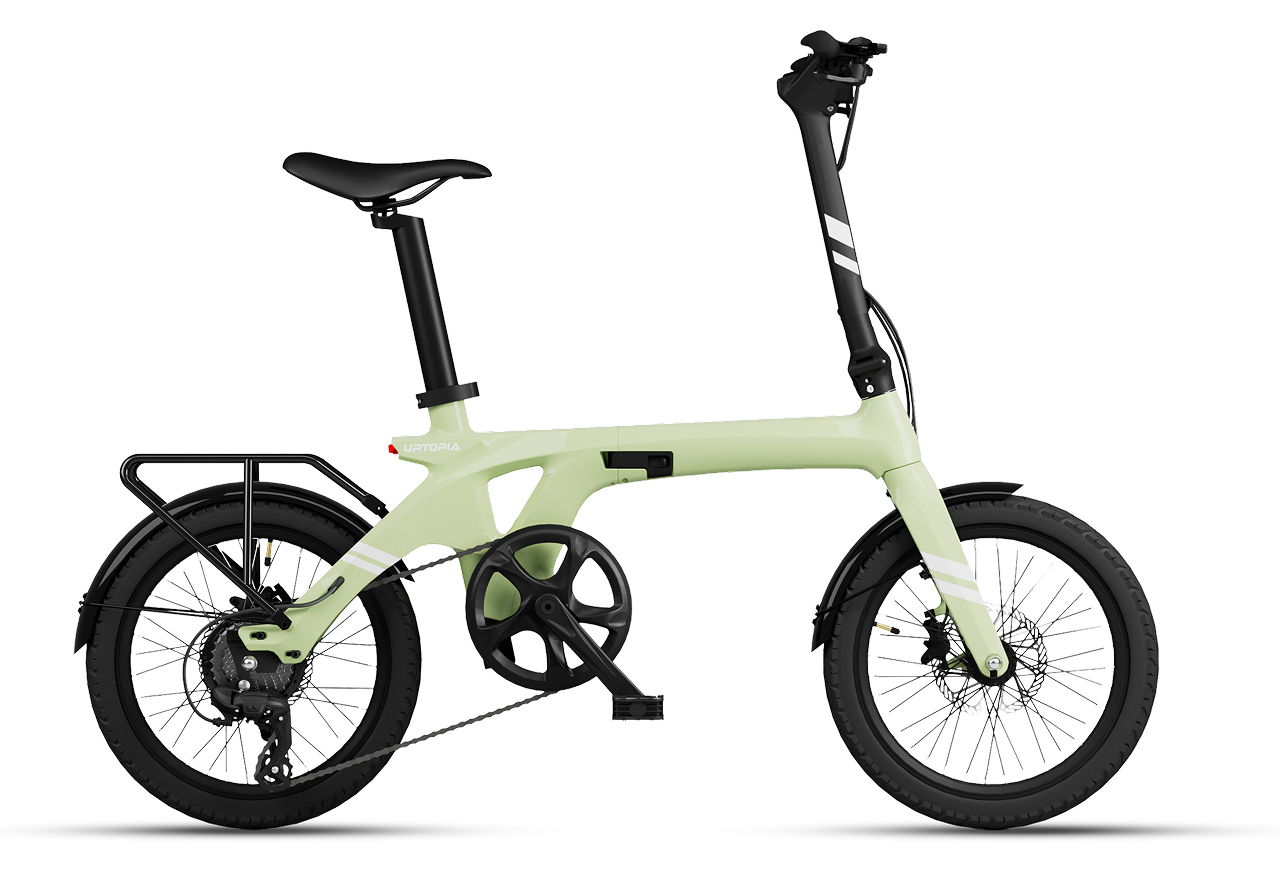

Urtopia Carbon Fold 1 E-Bike
- Motor Power
- Rated Power 250W (Peak Power 440W) rear hub
- Battery
- 252Wh
- Pedal Assist Range
- Up to 37 miles
- Total Payload Limit
- 220 lbs
Get to know your ride.
- Material
- Carbon fiber frame & fork
- Brakes
- TEKTRO 2-piston hydraulic disc brakes
- Wheels
- Kenda K841 18" x 2.0"
- Sensors
- Torque sensor
- Fork
- Carbon fiber fork
Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
General Info
- Ideal use
- Commuter
- Bike Weight
- 34.2lbs（15.5kg）
- Net Weight
- 33lbs（15kg）w/battery / 28.9lbs（13.1kg）w/o battery / *All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
- Material
- Carbon fiber frame & fork
- Folding
- Yes
- Frame style
- Step-Over
- Pedal Assist Range
- Up to 37 miles / *The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
- Top Speed
- 20mph
- Total Payload Limit
- 220 lbs
- Rider Height
- Regular: 5'1'' - 6'1''
- Brakes
- TEKTRO 2-piston hydraulic disc brakes
- Wheels
- Kenda K841 18" x 2.0"
- Bike Water Resistance
- IP65
Ebike System
- Motor Power
- Rated Power 250W (Peak Power 440W) rear hub
- Motor Max. Torque
- 26Nm
- Battery
- 36V 7Ah (252Wh) Seat Post Battery, UL 2271 Certified (TUV Rheinland)
- External Battery
- No
- Pedal Assist
- 4 levels
- Charger
- 36V 2A Charger, DC Head, 4 Hour Charging Time / 36V 4A Fast Charger, 2.5-Hour Charging Time
- Display
- 2.0'' Color LCD display
- USB Charge
- Yes
- Sensors
- Torque sensor
- Lights
- Front: External headlights 160LM / Rear: Integrated rear light
- Throttle
- No
- Class
- Class 1
Drivetrain
- Chainrings
- 53T
- Crankset
- Aluminum, length 170mm
- Cassette
- 11-32T, 8 Speed
- Chain
- Shimano 8-Speed
- Rear Derailleur
- Shimano Altus 8-Speed
- Shift Lever
- 8 Speed Trigger
- Pedals
- Foldable PC pedals, 98x72x26mm
Cockpit
- Grips
- Durable ergonomic grips, lockable
- Seat Post
- Aluminum seat post with intube battery diameter 46mm, adjustable range 180mm
- Fork
- Carbon fiber fork
- Saddle
- Velo Saddle, 272x158x70mm
- Handlebar
- Carbon fiber, Integrated Display, 23.4" (595mm) Wide
- Stem
- Aluminum + carbon fiber folding stem
Smartbar
- Smartbar features
- No
- Connectivity
- No
- Theft Defenses
- No
- App
- only for OTA
- SIM/Connect Service
- No
Size guide
One Size
- Recomm. rider height
- 5’1’’~6’1’’
- A. Adjustable seat range
- 220 mm(9’’)
- B. Highest point of the seat post
- 1020 mm(40’’)
- C. Overall length
- 1480 mm(58’’)
- D. Handlebar grips height
- 1090 mm(43’’)
- E. Headset height
- 400 mm(16’’)
- F. Seat tube length
- 310 mm(12’’)
- G. Wheel diameter
- 450 mm(18’’)
- H. Wheelbase
- 1000 mm(39’’)

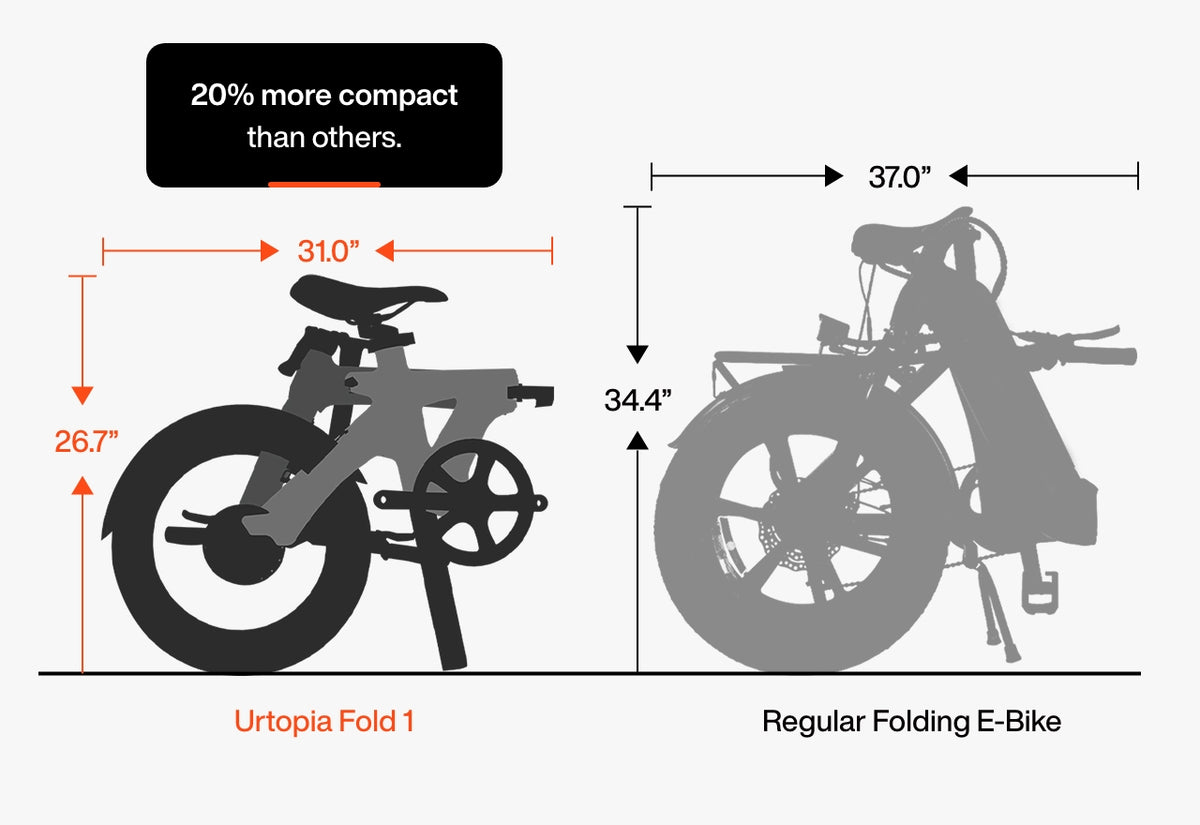

- I. Height after folding
- 680 mm(27’’)
- J. Overall length after folding
- 800 mm(31’’)
- K. Standover height
- 550 mm(22’’)
- L: width after folding
- 500 mm(19’’)
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 867-9792 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
Manufacturer information & resources
Model-specific reference information. Follow the manufacturer’s instructions for setup, use, and care.
- newurtopia.com — urtopia carbon fold · Checked 2026-09-19
