A closer look

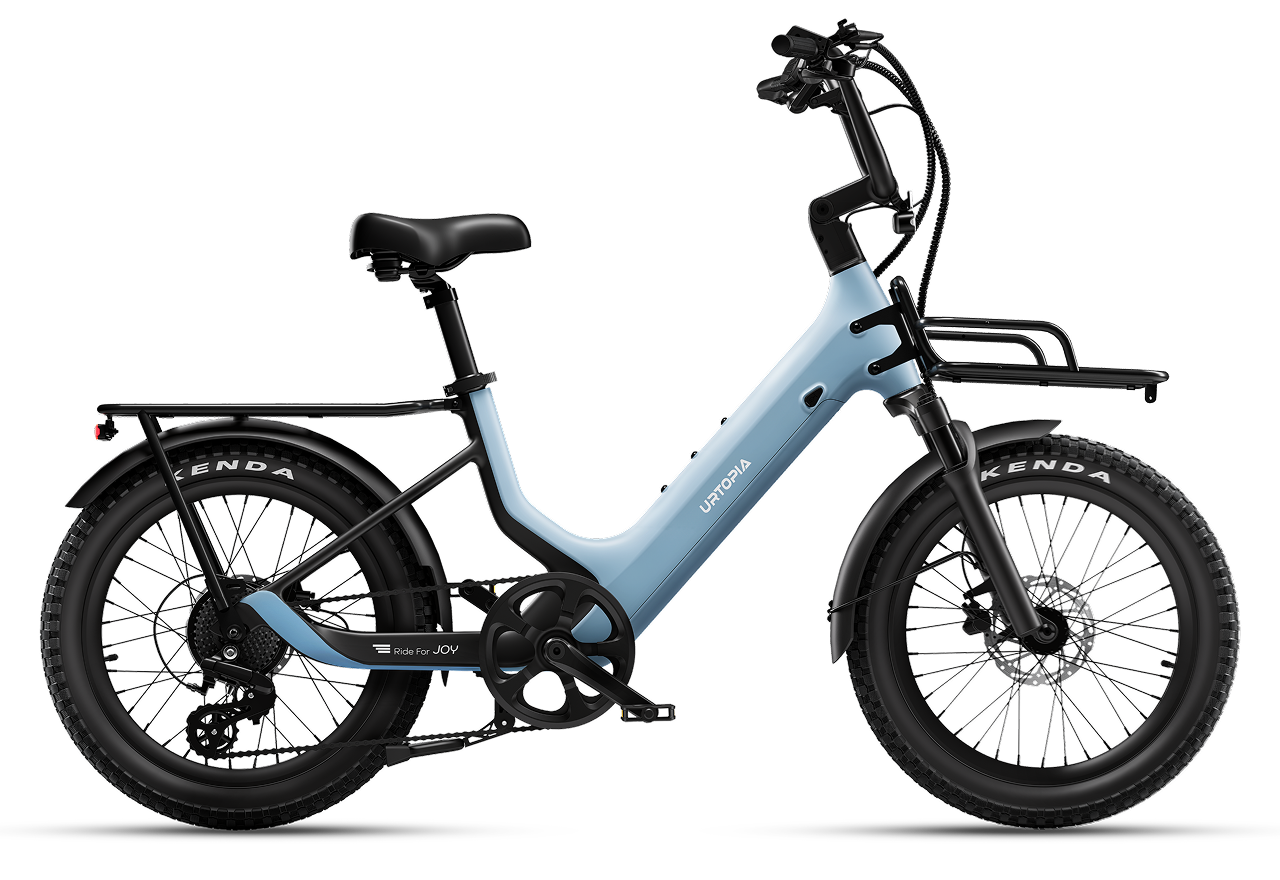

Urtopia Carbon Joy E-Bike
- Motor Power
- Rated Power 500W (Peak Power 750W) rear hub
- Battery
- 529.2Wh
- Pedal Assist Range
- Up to 65 miles
- Total Payload Limit
- 330 lbs
Get to know your ride.
- Material
- Carbon fiber frame
- Brakes
- TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor
- Wheels
- Kenda 20"x3.0", puncture-resistant fat tire, Thru-Axle
- Sensors
- Torque sensor
- Fork
- 50mm travel Aluminum suspension fork with preload adjustment
Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
General Info
- Ideal use
- Cargo & Utility
- Bike Weight
- 56.8 lbs (25.8kg)
- Net Weight
- 52.4 lbs (23.8kg) w/ battery 45.3 lbs (20.6kg) w/o battery / *All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
- Material
- Carbon fiber frame
- Folding
- No
- Frame style
- Step-Through
- Pedal Assist Range
- Up to 65 miles / *The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
- Top Speed
- 20mph by default / 25mph upon unlock
- Total Payload Limit
- 330 lbs
- Rider Height
- Regular: 5'1"–6'1"
- Brakes
- TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor
- Wheels
- Kenda 20"x3.0", puncture-resistant fat tire, Thru-Axle
- Bike Water Resistance
- IP65
Ebike System
- Motor Power
- Rated Power 500W (Peak Power 750W) rear hub
- Motor Max. Torque
- 50Nm
- Battery
- 36V, 14,7Ah (529.2Wh) Samsung Li-ion, Removable, UL 2271 Certified
- External Battery
- No
- Pedal Assist
- 4 levels
- Charger
- 36V 4A Fast Charger, 3.5-Hour Charging Time
- Display
- 3.5'' Color LCD display
- USB Charge
- Yes
- Sensors
- Torque sensor
- Lights
- Front: External light, 30 Lux / Rear: External tail light w/ brake sensing, rear rack mounted
- Throttle
- Yes (up to 20mph)
- Class
- Class 2 by default / Class 3 upon unlock
Drivetrain
- Chainrings
- 50T
- Crankset
- Aluminum alloy, 152mm
- Cassette
- 12-32T, 8 Speed
- Chain
- Shimano 8-Speed
- Rear Derailleur
- Shimano Altus 8-speed
- Shift Lever
- 8 Speed Trigger
- Pedals
- PP, 103 x 84 x 24mm
Cockpit
- Grips
- Durable ergonomic Grips, lockable
- Seat Post
- Aluminum Alloy, 2-stage adjustable design Diameter: φ30.9mm (inner section) φ34.9mm (outer section) Adjustment range: 100mm (inner section) 120mm (outer section)
- Fork
- 50mm travel Aluminum suspension fork with preload adjustment
- Saddle
- Comfort saddle, 253x223x90mm
- Handlebar
- BMX style, Aluminum, 31.8mm Clamp, 720mm wide, 16° backsweep
- Stem
- Aluminum Stem, 0-90° adjustable
Smartbar
- Smartbar features
- No
- Connectivity
- Bluetooth
- Theft Defenses
- No
- App
- only for OTA
- SIM/Connect Service
- No
Size guide
One Size
- Recomm. rider height
- 4’11’’~6’3’’
- A. Top Tube Length
- 586 mm(23’’)
- B. Max Seat Height
- 1010 mm(40’’)
- C. Min Seat Height
- 770 mm(30’’)
- D. Overall Length
- 1698 mm(67’’)
- E. Wheelbase
- 1136.5 mm(45’’)
- F. Wheel Diameter
- 560 mm(22’’)
- G. Head Tube Length
- 190 mm(7’’)
- H. Handlebar Height
- 1011 mm(40’’)
- I. Standover Height
- 411 mm(16’’)
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 867-9792 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
