A closer look

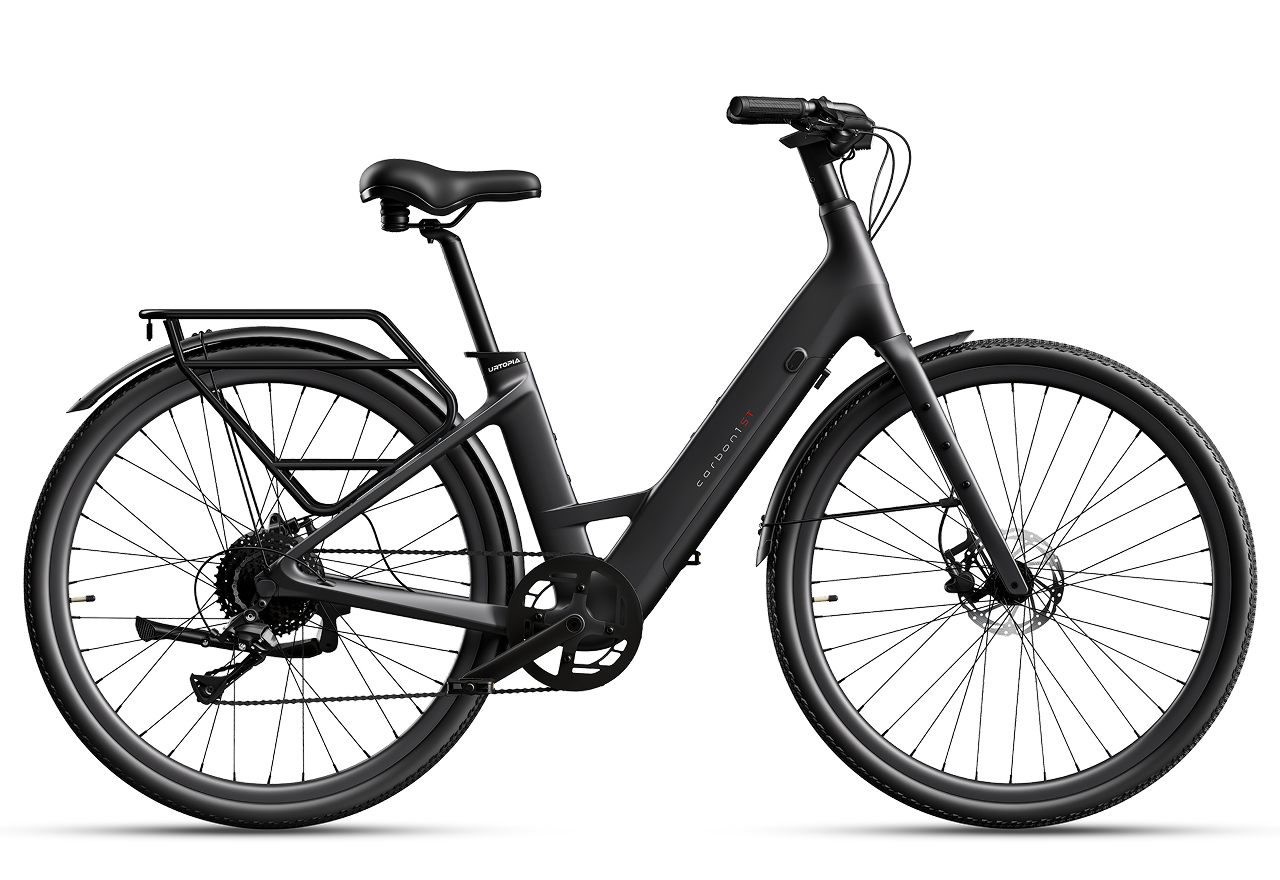

Urtopia Carbon 1 Step-Thru E-Bike
- Motor Power
- Rated Power 350W (Peak Power 500W) rear hub
- Battery
- 352.8Wh
- Pedal Assist Range
- Up to 81 miles
- Total Payload Limit
- 240 lbs
Get to know your ride.
- Material
- Carbon fiber frame & fork
- Brakes
- TEKTRO 2-Piston Hydraulic Disc Brakes
- Wheels
- Kenda 700C x 40mm (45mm max.) tires
- Sensors
- Torque sensor
- Fork
- Carbon fiber fork
Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
General Info
- Ideal use
- Commuter
- Bike Weight
- 41 lbs (18.6kg)
- Net Weight
- 38 lbs (17.4kg) w/ battery / 33 lbs (15.2kg) w/o battery / *All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
- Material
- Carbon fiber frame & fork
- Folding
- No
- Frame style
- Step-Through
- Pedal Assist Range
- Up to 81 miles / *The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
- Top Speed
- 20mph by default / 25mph upon unlock
- Total Payload Limit
- 240 lbs
- Rider Height
- Regular: 5'1" - 5'9"
- Brakes
- TEKTRO 2-Piston Hydraulic Disc Brakes
- Wheels
- Kenda 700C x 40mm (45mm max.) tires
- Bike Water Resistance
- IP65
Ebike System
- Motor Power
- Rated Power 350W (Peak Power 500W) rear hub
- Motor Max. Torque
- 45Nm
- Battery
- 36V 9.8Ah (352.8Wh) Samsung Li-ion, Removable, UL 2271 Certified
- External Battery
- No
- Pedal Assist
- 4 levels
- Charger
- 36V 4A Fast Charger, 2.5-Hour Charging Time
- Display
- LED dot-matrix (Anti-glare)
- USB Charge
- No
- Sensors
- Torque sensor
- Lights
- Front: Integrated StVZO headlight, 90 lm / Rear: Tail light with dry battery (ARES light optional)
- Throttle
- No
- Class
- Class 1
Drivetrain
- Chainrings
- 44T
- Crankset
- Aluminum alloy, 170mm
- Cassette
- 11T-40T, 8 speed
- Chain
- Shimano 8-Speed
- Rear Derailleur
- Shimano ACERA 8-Speed
- Shift Lever
- 8 Speed Trigger
- Pedals
- 9/16" Alloy Platform
Cockpit
- Grips
- Durable ergonomic grips, lockable
- Seat Post
- Aluminum alloy, 31.6mm diameter, 300mm total length, 120mm marked range
- Fork
- Carbon fiber fork
- Saddle
- Comfort saddle, 255x222x104mm
- Handlebar
- Aluminum, 28.6mm Clamp, 680mm Wide
- Stem
- Height Adjustable: 0/15/30mm
Smartbar
- Smartbar features
- On-board navigation, fingerprint unlock, AI assistant, voice control, bluetooth speaker, OTA update (wireless firmware update),IP65
- Connectivity
- eSIM with 4G, GPS, Bluetooth
- Theft Defenses
- Movement alarm, Electronic Fence, Find My Bike (live GPS tracking), Beep
- App
- Urtopia (iOS & Android)
- SIM/Connect Service
- Renewal via App (Urtopia)
Size guide
One Size
- Recomm. rider height
- 5’1’’ - 6’1’’
- A. Adjustable seat range
- 120 mm(5’’)
- B. Handlebar grips height
- 1070-1100 mm(42’’-43’’)
- C. Seat tube length
- 380 mm(15’’)
- D. Wheelbase
- 1092 mm(43’’)
- E. Overall length
- 1812 mm(71’’)
- F. Wheel diameter
- 720 mm(28’’)
- G. Top tube length (effective)
- 383 mm(15’’)
- H. Head tube length
- 200 mm(8’’)
- I. Headset height
- 90-120 mm(4’’-5’’)
- J. Standover height
- 477mm(19’’)
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 867-9792 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
Manufacturer information & resources
Model-specific reference information. Follow the manufacturer’s instructions for setup, use, and care.
- newurtopia.com — urtopia carbon 1 step thru ebike · Checked 2026-09-19
