A closer look

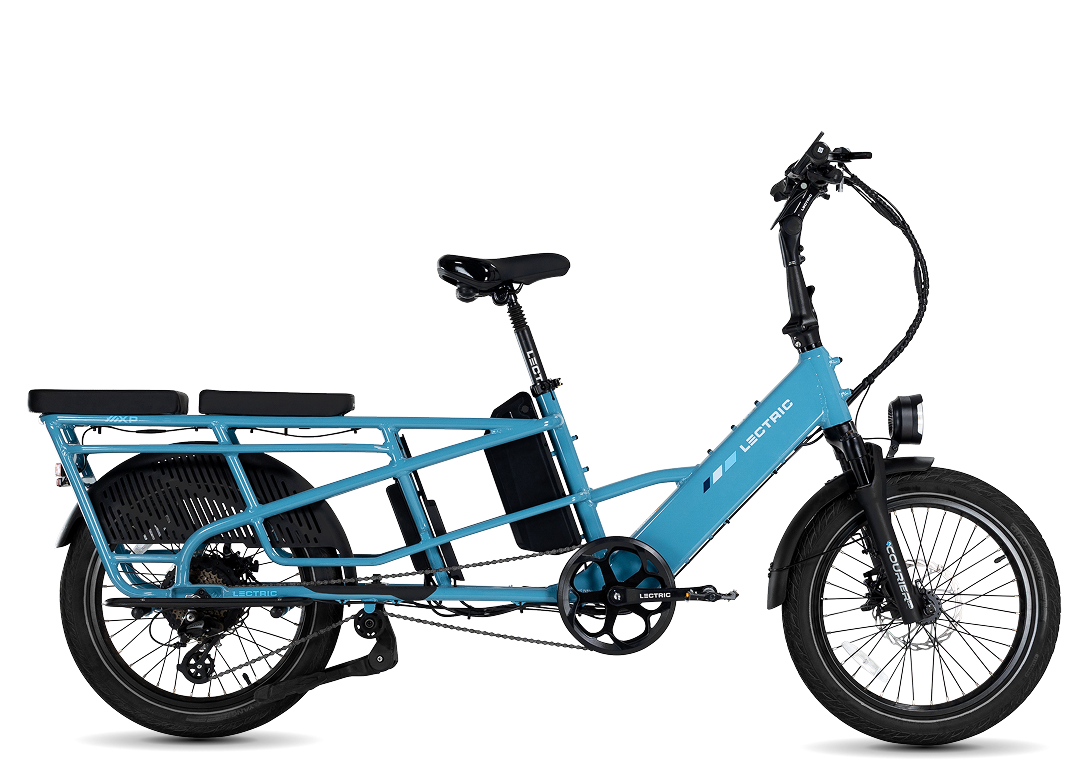

Lectric XPedition2 E-Bike
- Motor
- 750W rear hub; 1310W peak; 85Nm torque
- Battery
- Varies by configuration
- Pedal-assist range
- Varies by configuration
Select a configuration above to see its key specifications.
Get to know your ride.
- Fork
- Front suspension
- Tires
- 20” x 2.5”; puncture-resistant
- Brakes
- Hydraulic disc brakes; 180mm rotors
Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
Specifications below are separated by configuration. Match the name to your selection above; battery capacities and equipment can differ.
Shared features
- Throttle
- Thumb throttle
- Motor
- 750W rear hub; 1310W peak; 85Nm torque
- Motor Controller
- 24 amp
- Rear Rack
- Rear rack; capacity up to 300 lb
- Fork
- Front suspension
- Display
- Color LCD; USB-C port
- Tires
- 20” x 2.5”; puncture-resistant
- Pedal-assist sensor
- Torque sensor
- Drivetrain
- Shimano Altus; 8-speed, 11–32T freewheel
- Brakes
- Hydraulic disc brakes; 180mm rotors
- Turn Signals
- Rear turn signals
- Fenders
- Front and rear fenders
- Storage
- Folding frame and handlebar stem
- Bike weight
- 65 lb without batteries; battery 9 lb each
- Charger
- 2A supplied charger
- Frame
- 6000-series aluminum
- Electrical certifications
- Manufacturer lists UL 2849 for the electrical system and UL 2271 for the battery
XPedition2 Stratus White
- Battery
- 48V, 13Ah (624Wh); removable
- Pedal-assist range
- up to 60 miles
Size & fit
Size guide
- Bike Unfolded
- 77"L x 17"W x 46"H
- Stand Over Height
- 21"
- Handlebar Height
- 41"-44" (adjustable)
- Bike Folded
- 70"L x 10"W x 30"H
- Payload Capacity
- Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
- Rear Rack Payload Capacity
- Max: 300 lbs.
- Rider Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 49” / Min: 32”
- Handlebar Width
- 25"
- Rider Height
- 4’11” - 6’5”
- Rear Rack
- 36.7”L x 6.8”W (300lb capacity)
- Handlebar Reach
- 17” - 24.5”
XPedition2 Raindrop Blue
- Battery
- 48V, 13Ah (624Wh); removable
- Pedal-assist range
- up to 60 miles
Size & fit
Size guide
- Bike Unfolded
- 77"L x 17"W x 46"H
- Stand Over Height
- 21"
- Handlebar Height
- 41"-44" (adjustable)
- Bike Folded
- 70"L x 10"W x 30"H
- Payload Capacity
- Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
- Rear Rack Payload Capacity
- Max: 300 lbs.
- Rider Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 49” / Min: 32”
- Handlebar Width
- 25"
- Rider Height
- 4’11” - 6’5”
- Rear Rack
- 36.7”L x 6.8”W (300lb capacity)
- Handlebar Reach
- 17” - 24.5”
XPedition2 Raindrop Blue Dual-Battery
- Battery
- Two batteries, each 48V, 13Ah (combined 26Ah, 1248Wh); removable
- Pedal-assist range
- up to 120 miles with both batteries
Size & fit
Size guide
- Bike Unfolded
- 77"L x 17"W x 46"H
- Stand Over Height
- 21"
- Handlebar Height
- 41"-44" (adjustable)
- Bike Folded
- 70"L x 10"W x 30"H
- Payload Capacity
- Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
- Rear Rack Payload Capacity
- Max: 300 lbs.
- Rider Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 49” / Min: 32”
- Handlebar Width
- 25"
- Rider Height
- 4’11” - 6’5”
- Rear Rack
- 36.7”L x 6.8”W (300lb capacity)
- Handlebar Reach
- 17” - 24.5”
XPedition2 Stratus White Dual-Battery
- Battery
- Two batteries, each 48V, 13Ah (combined 26Ah, 1248Wh); removable
- Pedal-assist range
- up to 120 miles with both batteries
Size & fit
Size guide
- Bike Unfolded
- 77"L x 17"W x 46"H
- Stand Over Height
- 21"
- Handlebar Height
- 41"-44" (adjustable)
- Bike Folded
- 70"L x 10"W x 30"H
- Payload Capacity
- Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
- Rear Rack Payload Capacity
- Max: 300 lbs.
- Rider Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 49” / Min: 32”
- Handlebar Width
- 25"
- Rider Height
- 4’11” - 6’5”
- Rear Rack
- 36.7”L x 6.8”W (300lb capacity)
- Handlebar Reach
- 17” - 24.5”
XPedition2 Stratus White Long-Range Dual-Battery
- Battery
- Two batteries, each 48V, 17.5Ah (combined 35Ah, 1680Wh); removable
- Pedal-assist range
- up to 170 miles with both batteries
Size & fit
Size guide
- Bike Unfolded
- 77"L x 17"W x 46"H
- Stand Over Height
- 21"
- Handlebar Height
- 41"-44" (adjustable)
- Bike Folded
- 70"L x 10"W x 30"H
- Payload Capacity
- Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
- Rear Rack Payload Capacity
- Max: 300 lbs.
- Rider Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 49” / Min: 32”
- Handlebar Width
- 25"
- Rider Height
- 4’11” - 6’5”
- Rear Rack
- 36.7”L x 6.8”W (300lb capacity)
- Handlebar Reach
- 17” - 24.5”
XPedition2 Raindrop Blue Long-Range Dual-Battery
- Battery
- Two batteries, each 48V, 17.5Ah (combined 35Ah, 1680Wh); removable
- Pedal-assist range
- up to 170 miles with both batteries
Size & fit
Size guide
- Bike Unfolded
- 77"L x 17"W x 46"H
- Stand Over Height
- 21"
- Handlebar Height
- 41"-44" (adjustable)
- Bike Folded
- 70"L x 10"W x 30"H
- Payload Capacity
- Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
- Rear Rack Payload Capacity
- Max: 300 lbs.
- Rider Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 49” / Min: 32”
- Handlebar Width
- 25"
- Rider Height
- 4’11” - 6’5”
- Rear Rack
- 36.7”L x 6.8”W (300lb capacity)
- Handlebar Reach
- 17” - 24.5”
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 867-9792 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
