A closer look
Lectric XP4 E-Bike
- Motor
- Varies by configuration
- Battery
- Varies by configuration
- Pedal-assist range
- Varies by configuration
Select a configuration above to see its key specifications.
Get to know your ride.
- Tires
- 20” x 3”; puncture-resistant
- Fork
- Front suspension
Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
Specifications below are separated by configuration. Match the name to your selection above; battery capacities and equipment can differ.
Shared features
- Throttle
- Thumb throttle
- Rear Rack
- Rear rack; capacity up to 150 lb
- Display
- Color LCD; USB-C port
- Tires
- 20” x 3”; puncture-resistant
- Pedal-assist sensor
- Torque sensor
- Drivetrain
- Shimano Altus; 8-speed, 11–32T freewheel
- 602 Hydraulic Brakes
- Hydraulic disc brakes; 180mm rotors
- Turn Signals
- Rear turn signals
- Fork
- Front suspension
- Fenders
- Front and rear fenders
- Storage
- Folding frame and handlebar stem
- Charger
- 2A supplied charger
- Frame
- 6000-series aluminum
- Electrical certifications
- Manufacturer lists UL 2849 for the electrical system and UL 2271 for the battery
XP4 Step-Thru Stratus White
- Motor
- 500W rear hub; 1092W peak; 55Nm torque
- Battery
- 48V, 10.4Ah (500Wh); removable
- Pedal-assist range
- up to 50 miles
- Bike weight
- 62 lb without battery; battery 7 lb
- Motor Controller
- 20amp; IPX5 rated
Size & fit
Size guide
- Bike Unfolded
- 66"L x 18.5"W x 47"H
- Stand Over Height
- 19"
- Handlebar Height
- 45"-48" (adjustable)
- Bike Folded
- 37"L x 17"W x 29"H
- Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 42” / Min: 29.5”
- Handlebar Width
- 25"
- Rider Height
- 4’10” - 6’3”
- Rear Rack
- 13.5L x 6.5W (150lb capacity)”
- Handlebar Reach
- 15” - 18”
- Bike Weight with Battery removed
- 62 lbs.
- Battery Weight
- 7 lbs.
XP4 Tempest Grey
- Motor
- 500W rear hub; 1092W peak; 55Nm torque
- Battery
- 48V, 10.4Ah (500Wh); removable
- Pedal-assist range
- up to 50 miles
- Bike weight
- 62 lb without battery; battery 7 lb
- Motor Controller
- 20amp; IPX5 rated
Size & fit
Size guide
- Bike Unfolded
- 66"L x 18.5"W x 47"H
- Stand Over Height
- 24"
- Handlebar Height
- 45"-48" (adjustable)
- Bike Folded
- 37"L x 17"W x 29"H
- Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 42” / Min: 29.5”
- Handlebar Width
- 25"
- Rider Height
- 4’10” - 6’3”
- Rear Rack
- 13.5L x 6.5W (150lb capacity)”
- Handlebar Reach
- 15” - 18”
- Bike Weight with Battery removed
- 62 lbs.
- Battery Weight
- 7 lbs.
XP4 750 Step-Thru Tempest Grey
- Motor
- 750W rear hub; 1310W peak; 85Nm torque
- Battery
- 48V, 17.5Ah (840Wh); removable
- Pedal-assist range
- up to 85 miles
- Bike weight
- 62 lb without battery; battery 9 lb
- Motor Controller
- 24amp; IPX5 rated
Size & fit
Size guide
- Bike Unfolded
- 66"L x 18.5"W x 47"H
- Stand Over Height
- 19"
- Handlebar Height
- 45"-48" (adjustable)
- Bike Folded
- 37"L x 17"W x 29"H
- Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 42” / Min: 29.5”
- Handlebar Width
- 25"
- Rider Height
- 4’10” - 6’3”
- Rear Rack
- 13.5L x 6.5W (150lb capacity)”
- Handlebar Reach
- 15” - 18”
- Bike Weight with Battery removed
- 62 lbs.
- Battery Weight
- 9 lbs.
XP4 750 Step-Thru Raindrop Blue
- Motor
- 750W rear hub; 1310W peak; 85Nm torque
- Battery
- 48V, 17.5Ah (840Wh); removable
- Pedal-assist range
- up to 85 miles
- Bike weight
- 62 lb without battery; battery 9 lb
- Motor Controller
- 24amp; IPX5 rated
Size & fit
Size guide
- Bike Unfolded
- 66"L x 18.5"W x 47"H
- Stand Over Height
- 19"
- Handlebar Height
- 45"-48" (adjustable)
- Bike Folded
- 37"L x 17"W x 29"H
- Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 42” / Min: 29.5”
- Handlebar Width
- 25"
- Rider Height
- 4’10” - 6’3”
- Rear Rack
- 13.5L x 6.5W (150lb capacity)”
- Handlebar Reach
- 15” - 18”
- Bike Weight with Battery removed
- 62 lbs.
- Battery Weight
- 9 lbs.
XP4 750 Step-Thru Stratus White
- Motor
- 750W rear hub; 1310W peak; 85Nm torque
- Battery
- 48V, 17.5Ah (840Wh); removable
- Pedal-assist range
- up to 85 miles
- Bike weight
- 62 lb without battery; battery 9 lb
- Motor Controller
- 24amp; IPX5 rated
Size & fit
Size guide
- Bike Unfolded
- 66"L x 18.5"W x 47"H
- Stand Over Height
- 19"
- Handlebar Height
- 45"-48" (adjustable)
- Bike Folded
- 37"L x 17"W x 29"H
- Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 42” / Min: 29.5”
- Handlebar Width
- 25"
- Rider Height
- 4’10” - 6’3”
- Rear Rack
- 13.5L x 6.5W (150lb capacity)”
- Handlebar Reach
- 15” - 18”
- Bike Weight with Battery removed
- 62 lbs.
- Battery Weight
- 9 lbs.
XP4 750 Tempest Grey
- Motor
- 750W rear hub; 1310W peak; 85Nm torque
- Battery
- 48V, 17.5Ah (840Wh); removable
- Pedal-assist range
- up to 85 miles
- Bike weight
- 62 lb without battery; battery 9 lb
- Motor Controller
- 24amp; IPX5 rated
Size & fit
Size guide
- Bike Unfolded
- 66"L x 18.5"W x 47"H
- Stand Over Height
- 24"
- Handlebar Height
- 45"-48" (adjustable)
- Bike Folded
- 37"L x 17"W x 29"H
- Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 42” / Min: 29.5”
- Handlebar Width
- 25"
- Rider Height
- 4’10” - 6’3”
- Rear Rack
- 13.5L x 6.5W (150lb capacity)”
- Handlebar Reach
- 15” - 18”
- Bike Weight with Battery removed
- 62 lbs.
- Battery Weight
- 9 lbs.
XP4 750 Pine Green
- Motor
- 750W rear hub; 1310W peak; 85Nm torque
- Battery
- 48V, 17.5Ah (840Wh); removable
- Pedal-assist range
- up to 85 miles
- Bike weight
- 62 lb without battery; battery 9 lb
- Motor Controller
- 24amp; IPX5 rated
Size & fit
Size guide
- Bike Unfolded
- 66"L x 18.5"W x 47"H
- Stand Over Height
- 24"
- Handlebar Height
- 45"-48" (adjustable)
- Bike Folded
- 37"L x 17"W x 29"H
- Payload Capacity
- Max: 330 lbs.
- Seat to Ground
- Max: 42” / Min: 29.5”
- Handlebar Width
- 25"
- Rider Height
- 4’10” - 6’3”
- Rear Rack
- 13.5L x 6.5W (150lb capacity)”
- Handlebar Reach
- 15” - 18”
- Bike Weight with Battery removed
- 62 lbs.
- Battery Weight
- 9 lbs.
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 867-9792 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
Manufacturer information & resources
Model-specific reference information. Follow the manufacturer’s instructions for setup, use, and care.
- lectricebikes.com — xp step thru white · Checked 2026-09-19
- lectricebikes.com — xp black · Checked 2026-09-19
- lectricebikes.com — xp step thru black long range · Checked 2026-09-19
- lectricebikes.com — xp step thru blue long range · Checked 2026-09-19
- lectricebikes.com — xp step thru white long range · Checked 2026-09-19
- lectricebikes.com — xp black long range · Checked 2026-09-19
- lectricebikes.com — xp green long range · Checked 2026-09-19
![Destination E Bike Rack for Electric Bikes [Velotric]](https://cdn11.bigcommerce.com/s-d1h1hqk20f/images/stencil/500x659/products/302/566/electric-bike-rack-2022-with-ramp_97e6af82-0fa4-4a07-9020-14addc4f3b08__70700.1776087388.jpg?c=1 "Destination E Bike Rack for Electric Bikes [Velotric]")

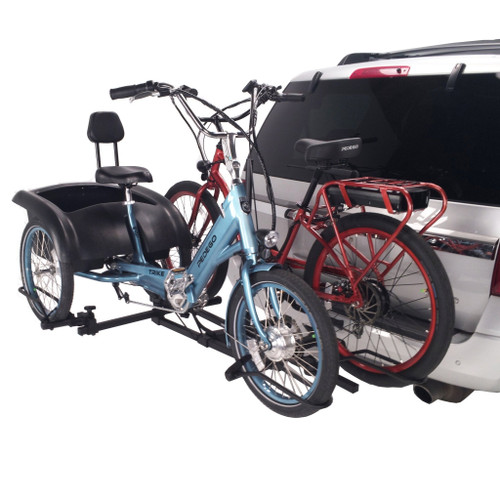

![Sport Rider SE Hitch Bike Rack For E-Bikes and E-Trikes [Hollywood Racks]](https://cdn11.bigcommerce.com/s-d1h1hqk20f/images/stencil/500x659/products/594/865/HRT330_With_Bike__21609.1776110540.jpg?c=1 "Sport Rider SE Hitch Bike Rack For E-Bikes and E-Trikes [Hollywood Racks]")
