Name: Velotric Nomad 2X Full Suspension Fat Tire Ebike [Velotric]
Brand: Velotric
Availability: InStock

Description

A closer look

Velotric Nomad 2X Full Suspension Fat Tire Ebike

Motor: 750W,105Nm Torque
Battery: 801.6Wh
Pedal Assist Range: Up to 75 Miles
Max Bike Load: 560 Lbs

Get to know your ride.

SensorSwap™: Torque/Cadence
Front Fork: Air suspension 120mm travel with Lock-out, Nutted, Rebound adjustable
Brake: Tektro Hydraulic Disc Brake
Tire: KENDA 26x4.0" eBike puncture resistant tires

Every angle. Every possibility.

Take a closer look.

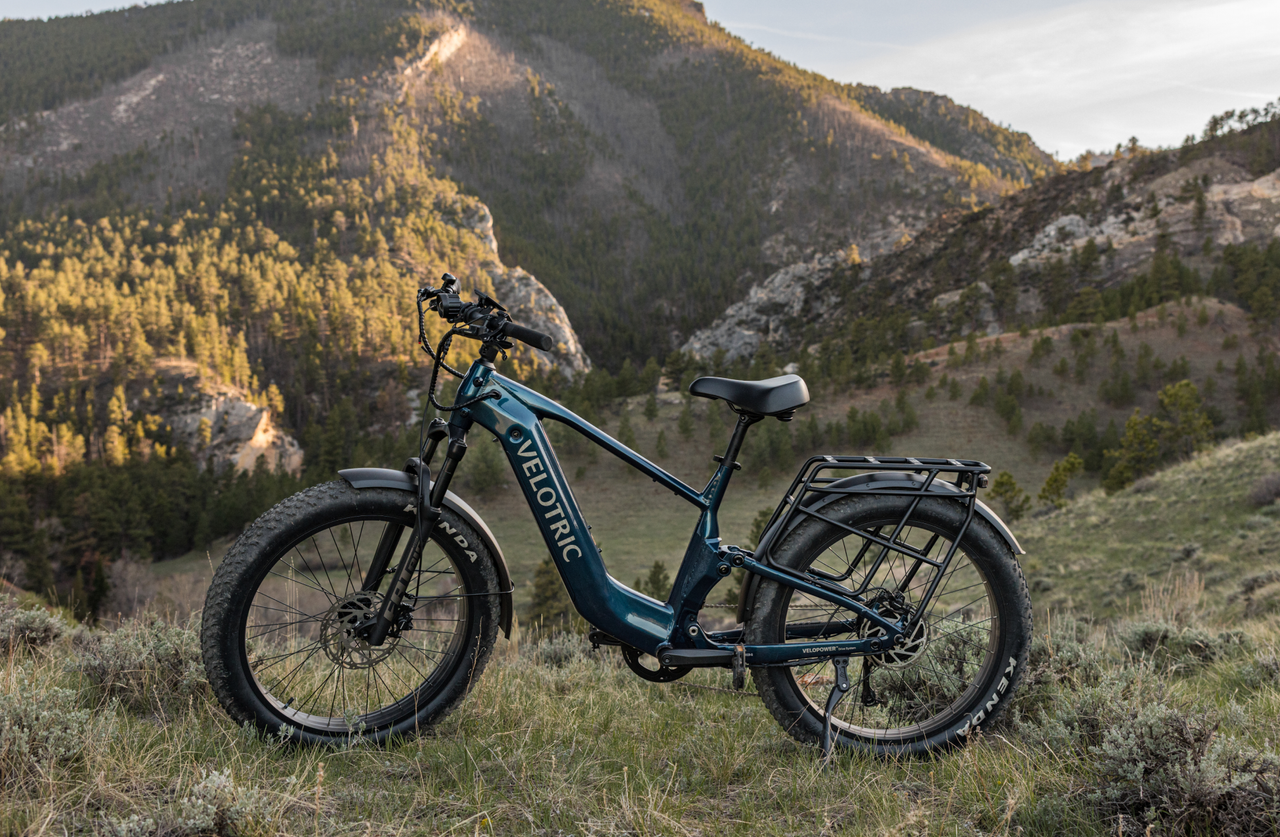

Velotric Nomad 2X Full Suspension Fat Tire Ebike — out on a ride

Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.

Know before you choose

Specifications & fit

General Info

Frame: High-Step, Step-Through

Electronics

Motor: 750W,105Nm Torque
Battery: Removable, 48V, 16.7Ah (801.6Wh), IPX7 & UL 2271 Certified
Cell: Samsung/LG 21700 cell, Certificated by UL2580
Display: 3.5" Full color, High brightness, Adjustable angle
SensorSwap™: Torque/Cadence
USB Port: USB Type-C phone charge
Throttle Assist: Trigger-control, removable
Pedal Assist Modes: 3 Riding Modes x 5 PAS Levels
Front Light: Light sensing 130 Lux / 500 LM high-output integrated LED
Water Resistant: IPX6 (Whole Bike)
App & Apple Find My™: APP OTA & Find My

Frameset

Frame: Triple-Butted Aluminum Alloy, Rear Wheel 80mm Travel
Front Fork: Air suspension 120mm travel with Lock-out, Nutted, Rebound adjustable
Rear Shock: DNM 38mm Air suspension, 80mm wheel travel

Speed & Range

Max Speed: 12~28 MPH; 20 MPH (Default)
Class: 1/2/3
Throttle Range: Up to 50 Miles
Pedal Assist Range: Up to 75 Miles

Brake

Brake: Tektro Hydraulic Disc Brake
Rotors: 203mm Front / 180mm Rear

Drivetrain

Chainrings: 48T
Crankset: Aluminum Alloy, 170mm
Freewheel: 11-40T
Rear Derailleur: SHIMANO 8-speed
Shift Lever: SHIMANO 8-speed

Weight & Load

Bike Weight: 80 Lbs
Max Bike Load: 560 Lbs
Rear Rack Load Capacity: 120 Lbs
Towing Capacity: 1000 Lbs

Cockpit

Handlebar: Aluminum Alloy, Ф31.8mm, 700mm
Grips: Durable ergonomic grips, lockable
Stem: Adjustable, Aluminum Alloy, ф31.8mm, 60mm (ST) / 90mm (HS)
Saddle: Velotric Comfortable & Ergonomic Seat

Wheel

Rims: Aluminum Alloy
Front Hub: Aluminum Alloy, nutted
Tire: KENDA 26x4.0" eBike puncture resistant tires

Supports

Fenders: Front and rear full coverage
Rear Rack: Aluminum Alloy, MIK HD
Pedals: Plastic
Kickstand: Aluminum Alloy, included, rear mount

Certification

UL Certification: UL 2849 & UL 2271
ISO Standard: ISO 4210

Size guide

Size Guide

Bike Size: Regular (Step-Through); Large (High-Step)
User Height Range: Regular: 4'11'' ~ 5'10''; Large: 5'10'' ~ 6'5''

Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.

A little local advice

Your questions, answered.

How do I choose the right configuration?

Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 300-0411 or contact our Galloway shop.

How do I get my order?

Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.

What affects battery range?

Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
