A closer look
Velotric Fold 1 Ebike
- Motor
- 48V, 750W (1050W Peak), 70Nm
- Battery
- 608Wh
- Pedal Assist Range
- Up to 55 Miles

Get to know your ride.
- Sensor
- Cadence Sensor
- Fork
- Coil suspension, 60mm travel with lock-out
- Brake
- Hydraulic Disc Brake
- Tire
- 20x3.0" eBike puncture-resistant tires

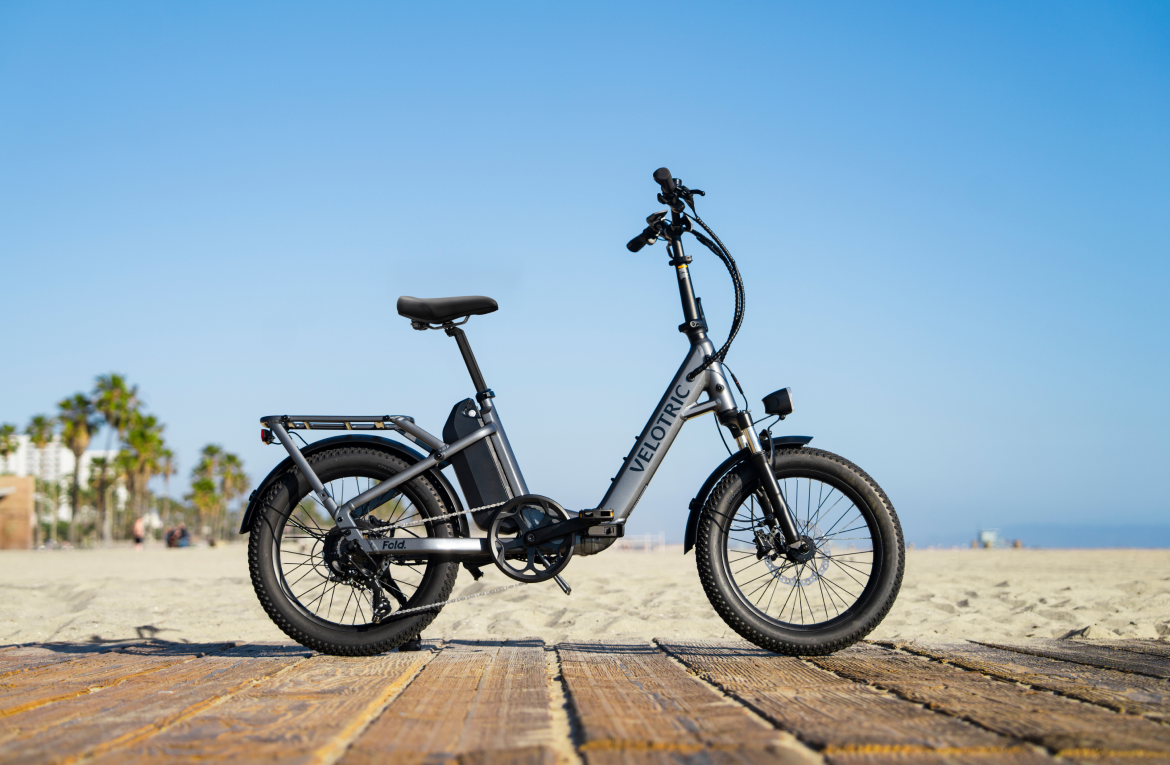

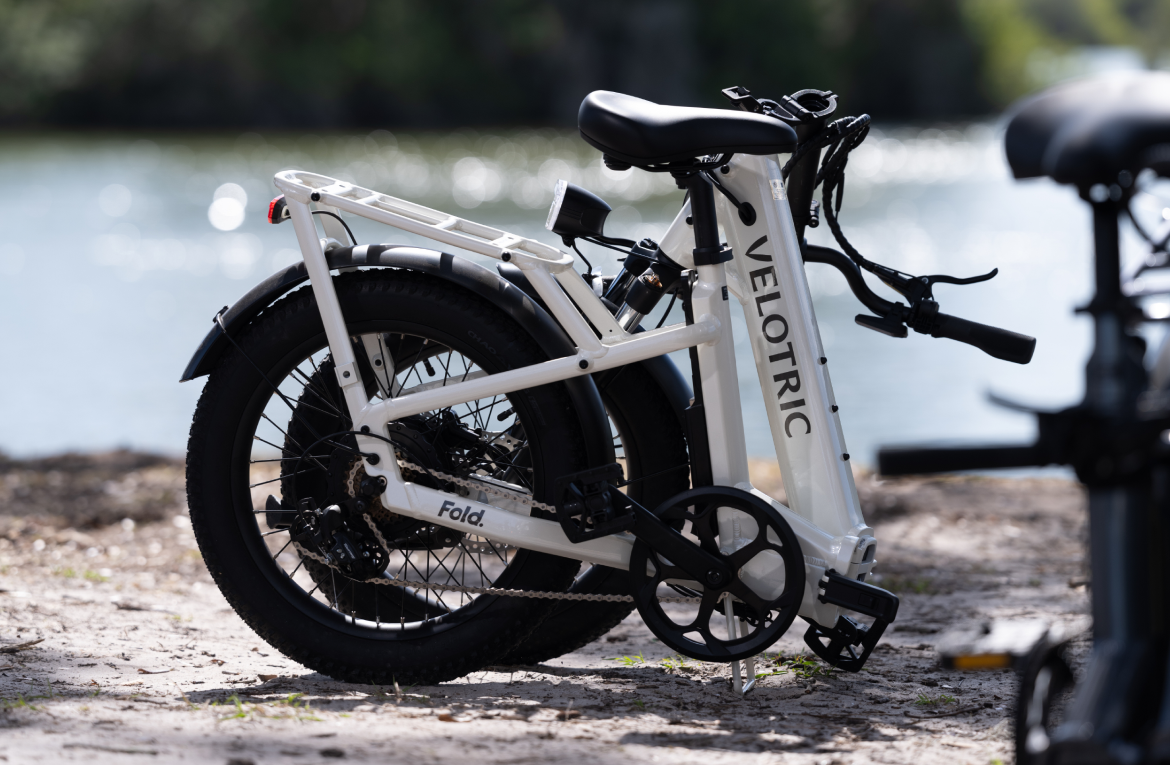

Every angle. Every possibility.
Take a closer look.
Manufacturer photos. Colors and equipment vary by configuration. Some photos show optional accessories, sold separately.
Know before you choose
Specifications & fit
General Info
- Frame
- Aluminum Alloy
Electronics
- Motor
- 48V, 750W (1050W Peak), 70Nm
- Battery
- 48V, 608Wh, IPX7, UL 2271 Certified
- Cell
- 18650 cell, UL 2580 Certified
- Charger
- 48V, 2A Fast Charger
- Sensor
- Cadence Sensor
- Display
- 1.8" LCD, high brightness
- USB Port
- USB Type-A phone charge
- Throttle
- Thumb-control, removable
- Pedal Assist
- 5 PAS Levels
- Walk Mode
- 2.9 MPH
- Front Light
- 60 Lux high-output integrated LED, adjustable angle
- Rear Light
- Braking indicator, integrated with rear rack
- Water Resistant
- IPX6
Frameset
- Frame
- Aluminum Alloy
- Fork
- Coil suspension, 60mm travel with lock-out
Speed & Range
- Max Speed (Default)
- 20 MPH
- Max Speed Adjustable Range
- 12~28 MPH
- Class
- 1 / 2 / 3
- Throttle Range
- Up to 45 Miles
- Pedal Assist Range
- Up to 55 Miles
Drivetrain
- Chainrings
- 52T
- Crankset
- Aluminum Alloy, 170mm
- Freewheel
- 7-speed, 11–28T
- Rear Derailleur
- SHIMANO 7-speed
- Shift Lever
- SHIMANO 7-speed
- Chain
- 7-speed
Brake
- Brake
- Hydraulic Disc Brake
- Rotors
- 180mm front and rear
- Brake Levers
- Aluminum Alloy, with power cutoff
Wheel
- Rims
- Double-wall Aluminum Alloy
- Front Hub
- Aluminum Alloy, nutted
- Tire
- 20x3.0" eBike puncture-resistant tires
Cockpit
- Handlebar
- Aluminum Alloy, Φ25.4mm, 660mm
- Grips
- Durable ergonomic grips, lockable
- Saddle
- VELOTRIC urban comfort ergonomic seat
- Seatpost
- Aluminum Alloy, φ30.9mm, 350mm
- Clamp
- Aluminum Alloy, quick release
Supports
- Fenders
- Steel, front and rear full coverage
- Rear Rack
- Aluminum Alloy, integrated with frame
- Pedals
- Plastic, foldable
- Kickstand
- Aluminum Alloy, included, rear mount
Weight & Load
- Bike Weight
- *63 lbs
- Rear Rack Load Capacity
- 120 lbs
- Max Bike Load Capacity
- 440 lbs
Certification
- UL Certification
- UL 2849
- ISO Standard
- ISO 4210
Size guide
Size Guide
- Bike Size
- One Size
- User Height Range
- 4'9'' ~ 6'5''
- Folded Size
- 37.8" L x 19.7" W x 33.5" H
Range figures are manufacturer estimates. Battery configuration, assist level, terrain, temperature, tire pressure, and rider or cargo weight affect actual distance. Optional extra batteries apply only when included in your selected configuration.
A little local advice
Your questions, answered.
How do I choose the right configuration?
Use the options beside the product price. For help with frame size, rider fit, or battery choice, call (609) 300-0411 or contact our Galloway shop.
How do I get my order?
Order online for pickup at Andy’s E-Bikes, 27 South New York Road, Galloway, NJ 08205. Contact our team to confirm pickup timing.
What affects battery range?
Published range is a manufacturer estimate. Your battery configuration, assist level, hills, speed, temperature, and rider or cargo weight all affect distance. Optional range-extender figures apply only with that battery fitted.
Manufacturer information & resources
Model-specific reference information. Follow the manufacturer’s instructions for setup, use, and care.
- www.velotricbike.com — velotric fold 1 · Checked 2026-09-19
